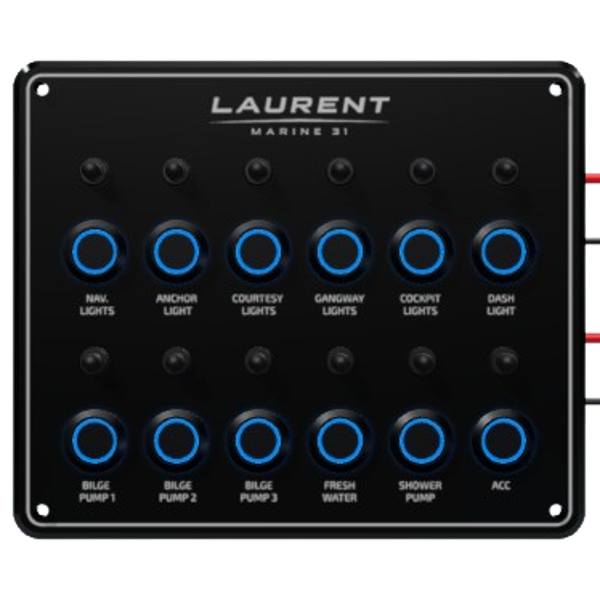

NorTide 0710 12 way switch panel
Top row, left to right
Left to right
NorTide Marine Equipment Switch Panel
198 x 166 mm
12 waterproof switch panels with LED ring
12 waterproof automatic circuit breakers (push to reset)
Custom logo and engravings
Backlight
Designed to fit the identical footprint of the VETUS® Switch Panel P12
Replacing your switch panel from Vetus® with a clean, modern and exclusive switch panel has never been easier.
Designed to fit the mounting footprint of Vetus® P12 switch panels, this panel allows for a simple upgrade without modifying the existing cut-out.
Finally. A Switch Panel that fits your old Vetus® P12 switch panel, without having to make any adjustments to your wiring or cutout. Simply remove the old panel, and replace it with your new NorTide Marine switch panel.
This switch panel is made from UV-resistant acrylic, combined with waterproof push buttons and automatic circuit breakers from NorTide Marine Equipment. Custom build for the harsh condition of the marine environment.
No Stickers, but engraved text and logo's make sure your new switch panel looks professional and unique. On top of that, the stickers do not degrade over time
This compact switch panel is equipped with thermal circuit breakers, LED indicators, and robust push buttons. Instead of printing your own labels, we engrave your custom text and logo directly into the panel.
Looking for the finishing touch? Choose illuminated engravings. The backlighting of the engravings can be switched on and off easily using a switch of your choice.
The engravings are perfectly smooth to the touch while remaining razor-sharp and highly visible.
Premium finish – Fully hand-finished and assembled.
12V / 24V multivoltage – Operating voltage range from 8V to 28V.

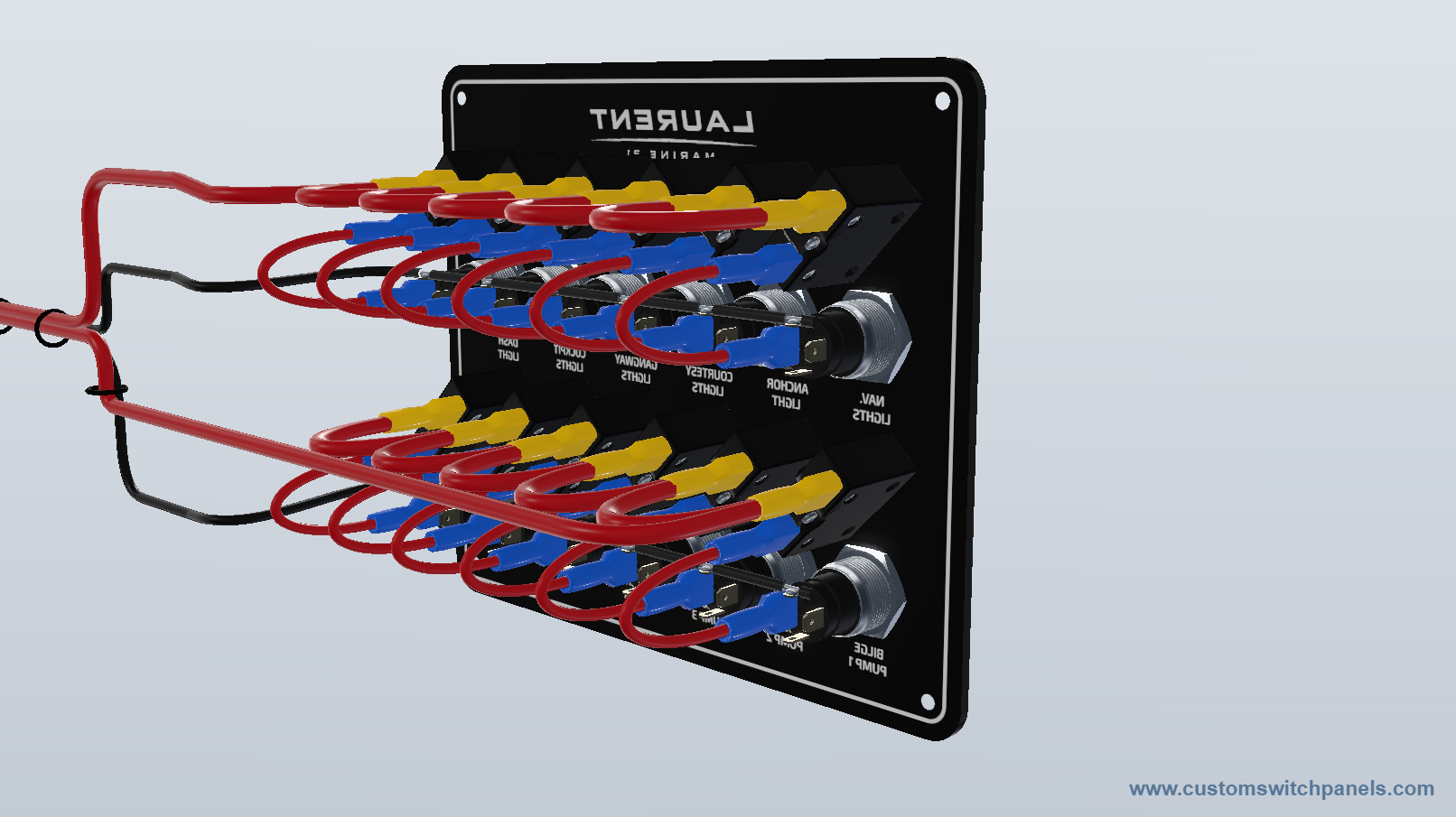

Easy installation – The panel is pre-wired exclusively with marine-approved and certified cabling.
| Brand | NorTide Marine |
|---|---|
| Article code | 0710 |
| Max. current (resistive) | 20 Ampere |
| Max. current (inductive) | 15Ampere |
| Circuit breakers value's | Choose yourself (after ordering) |
| Panel height | 166 mm |
| Panel width | 198 mm |
| Panel material | HiGloss Or UniMatte acryllaat |
| Panel material thickness | 5 of 6mm |
| Edges chamfered? | Yes, edges are chamfered and polished |
