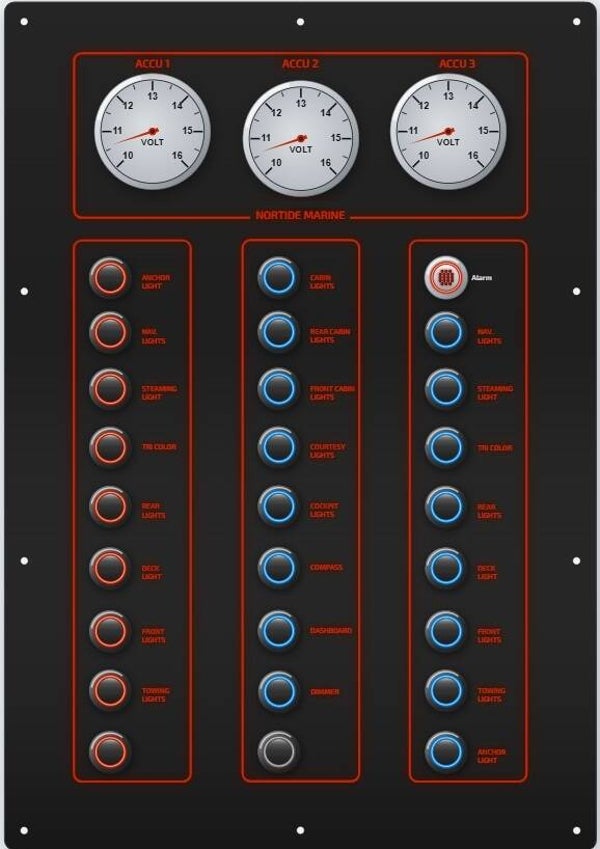

12V Switch panel - Nortide marine 1803- 26 pushbuttons with alarm and 3x 52mm gauges
Which text should be engraved with each button (from left to right)
NorTide marine Equipment 12V / 24V Switch/breaker panel with 12 pushbuttons and automatic circuit breakers
415 x 300 x 5 or 6 mm
-26 Stainless steel Waterproof pushbuttons with LED ring
-1x Buzzer alarm
-Custom engravings
-Pre-wired for easy installation
-Fully customisable, both layout and engravings
This switch panel is made from UV-resistant acrylic, combined with waterproof push buttons and automatic circuit breakers from NorTide Marine Equipment.
This compact switch panel is equipped with thermal circuit breakers, LED indicators, and robust push buttons. Instead of printing your own labels, we engrave your custom text and logo directly into the panel.
Looking for the finishing touch? Choose illuminated engravings. The backlighting of the engravings can be switched on and off easily using a switch of your choice.
The engravings are perfectly smooth to the touch while remaining razor-sharp and highly visible.
Premium finish – Fully hand-finished and assembled.
Completely waterproof - Foam gasket provides waterproof seal between panel and mounting surface
12V / 24V multivoltage – Operating voltage range from 8V to 28V.
Easy installation – The panel is pre-wired exclusively with marine-approved and certified cabling.
| Brand | NorTide Marine |
| Article code | 0630 |
| Max. Current per button (resistive) | 20 Ampere |
| max. Current per button (inductive) | 15 Ampere |
| Circuit breaker trip values | 5 / 10 / 15 / 20 Amp (selected by you after ordering) |
| Height | 245 mm |
| Width | 230 mm |
| Material | HiGloss Of UniMatte acryllic |
| Material thickness | 5 of 6mm |
| Edges chamfered? | Yes, edges are chamfered 45 degree, sanded and polished |
| Buttons IP rating (front side) | IP67 |
| Circuit breakers IP rating (front side) | IP67 |
| Panel gasket IP rating (front side) | IP65 |
| Backlight | Yes, engravings can be lit up |
Installation Tips
Download the template above and print it out. Check with a ruler that the printed version is to scale. Use of this template is entirely at your own risk.
-
Always install a suitably rated main fuse between the switch panel and the battery.
-
Ensure that the cable running from the battery to the panel is of sufficient gauge. We recommend using a 6 mm² cable.
-
Need assistance? Simply contact our technical support team.
