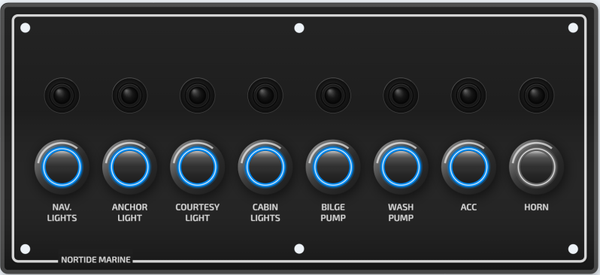

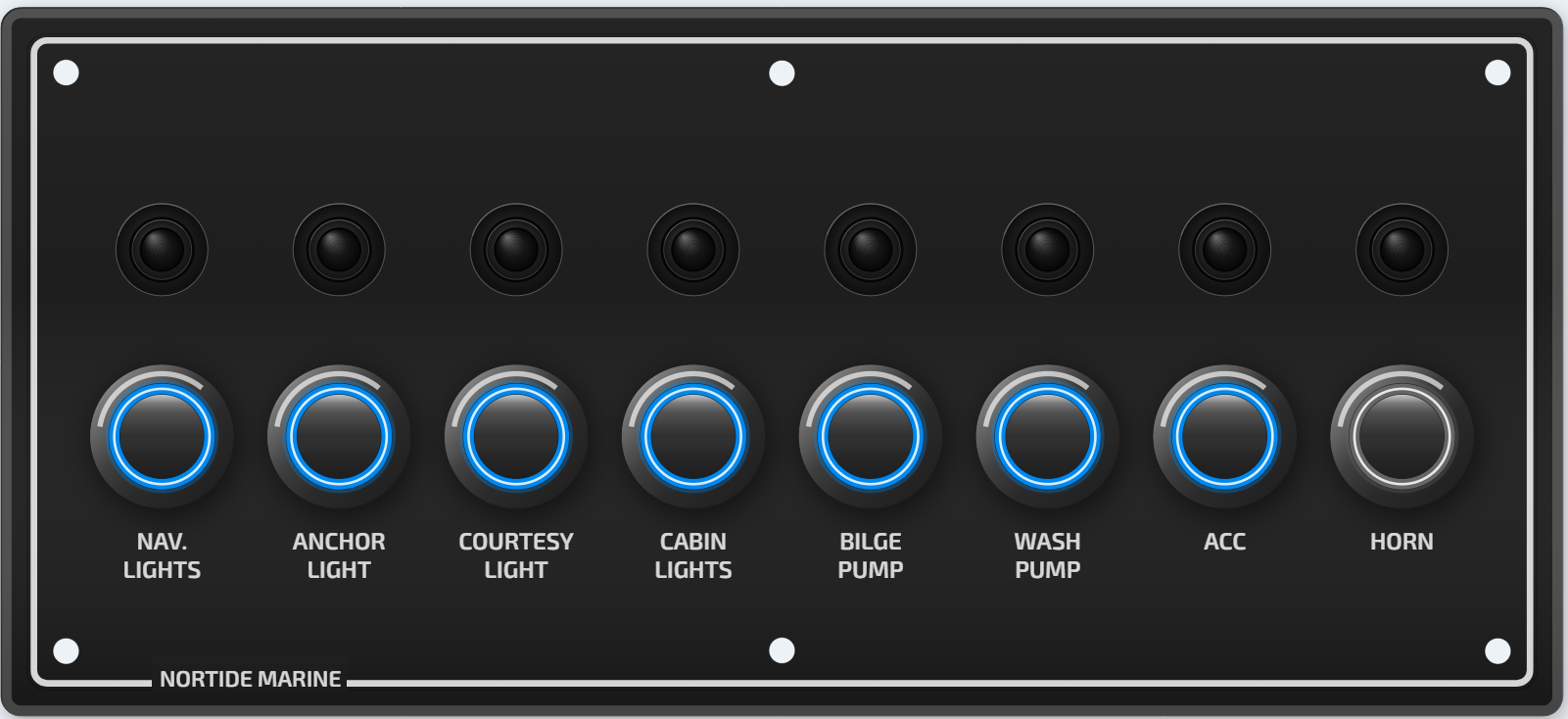

12V Switch panel - Nortide marine 0446 - 8 pushbuttons with circuit breakers -
Which text should be engraved with each button (from left to right)
NorTide marine Equipment 12V / 24V Switch panel with 8 pushbuttons and circuit breakers
95,25 x 238 mm
8 Waterproof pushbuttons with LED ring
8 Waterproof thermal circuit breakers (push to reset)
Custom logo and text engraved
Pre-wired for easy installation
This switch panel is made from UV-resistant acrylic, combined with waterproof push buttons and automatic circuit breakers from NorTide Marine Equipment.
This compact switch panel is equipped with thermal circuit breakers, LED indicators, and robust push buttons. Instead of printing your own labels, we engrave your custom text and logo directly into the panel.
Looking for the finishing touch? Choose illuminated engravings. The backlighting of the engravings can be switched on and off easily using a switch of your choice.
The engravings are perfectly smooth to the touch while remaining razor-sharp and highly visible.
Identical footprint as Blue Sea 8261 and Blue Sea 8353 - Replacing an older switch panel? We made it simple for you!
Premium finish – Fully hand-finished and assembled.
12V / 24V multivoltage – Operating voltage range from 8V to 28V.
Easy installation – The panel is pre-wired exclusively with marine-approved and certified cabling.
| Brand | NorTide Marine |
| Article code | 0446 |
| Max. Current per button (resistive) | 20 Ampere |
| max. Current per button (inductive) | 15Ampere |
| Circuit breaker trip values | 5 / 10 / 15 / 20 Amp (selected by you after ordering) |
| Height | 238 mm |
| Width | 95.25 mm |
| Material | HiGloss Of UniMatte Acryllic |
| Material thickness | 5 of 6mm |
| Edges chamfered? | Yes, edges are chamfered 45 degree, sanded and polished |
Installation Tips
Download the template above and print it out. Check with a ruler that the printed version is to scale. Use of this template is entirely at your own risk.
-
Always install a suitably rated main fuse between the switch panel and the battery.
-
Ensure that the cable running from the battery to the panel is of sufficient gauge. We recommend using a 6 mm² cable.
-
Need assistance? Simply contact our technical support team.
