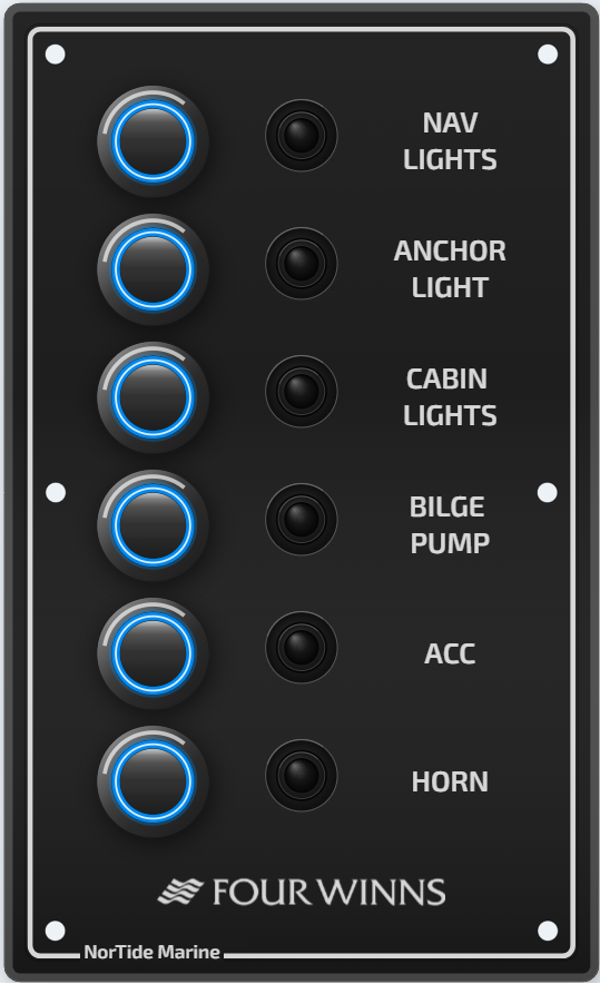

12V Switch panel - Nortide marine 0350 - 6 pushbuttons with circuit breakers -

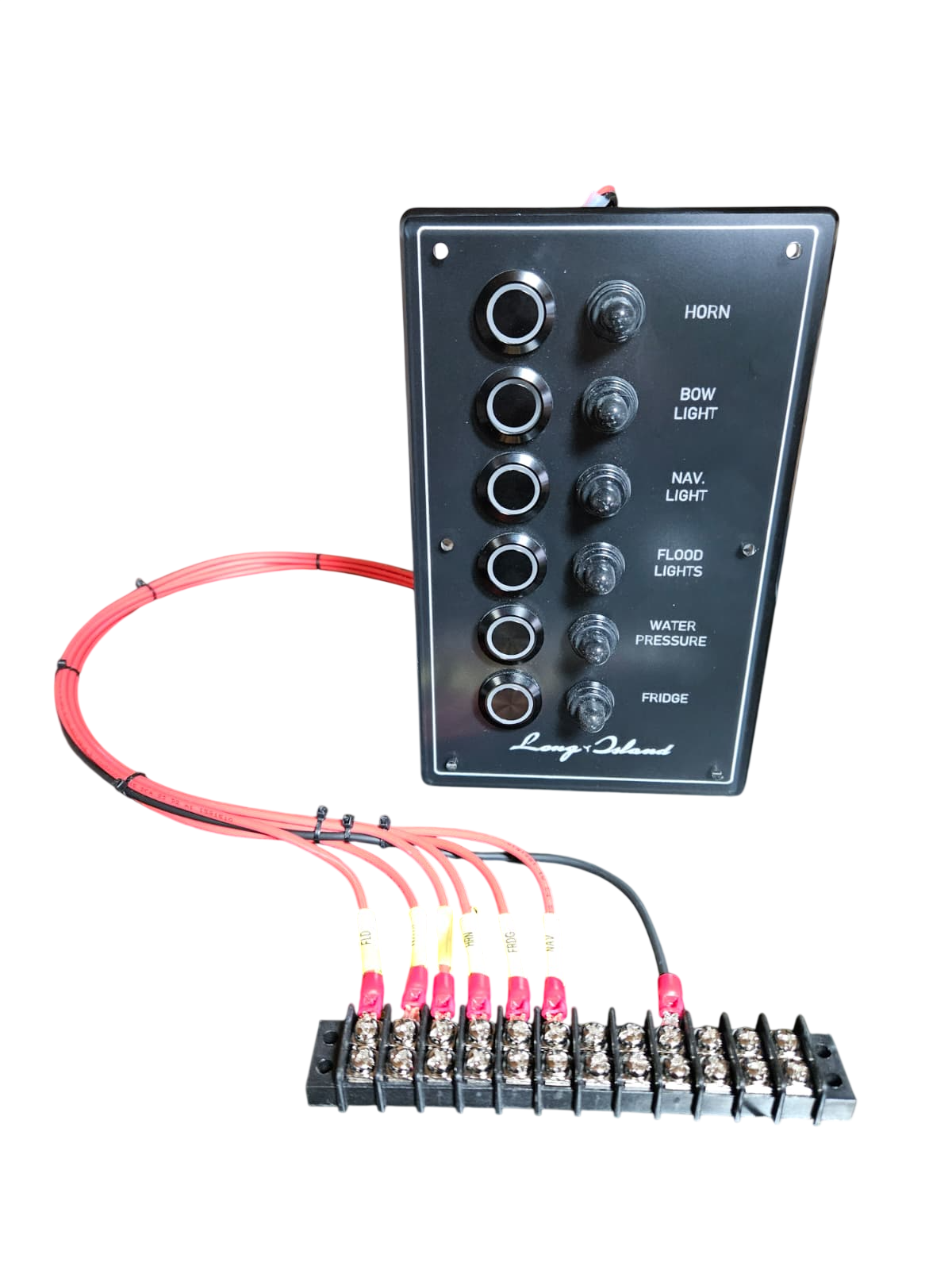

All consumer circuits can be connected here with ease. The wiring harness has a length of 60 cm.
Which text should be engraved with each switch? (from top to bottom)

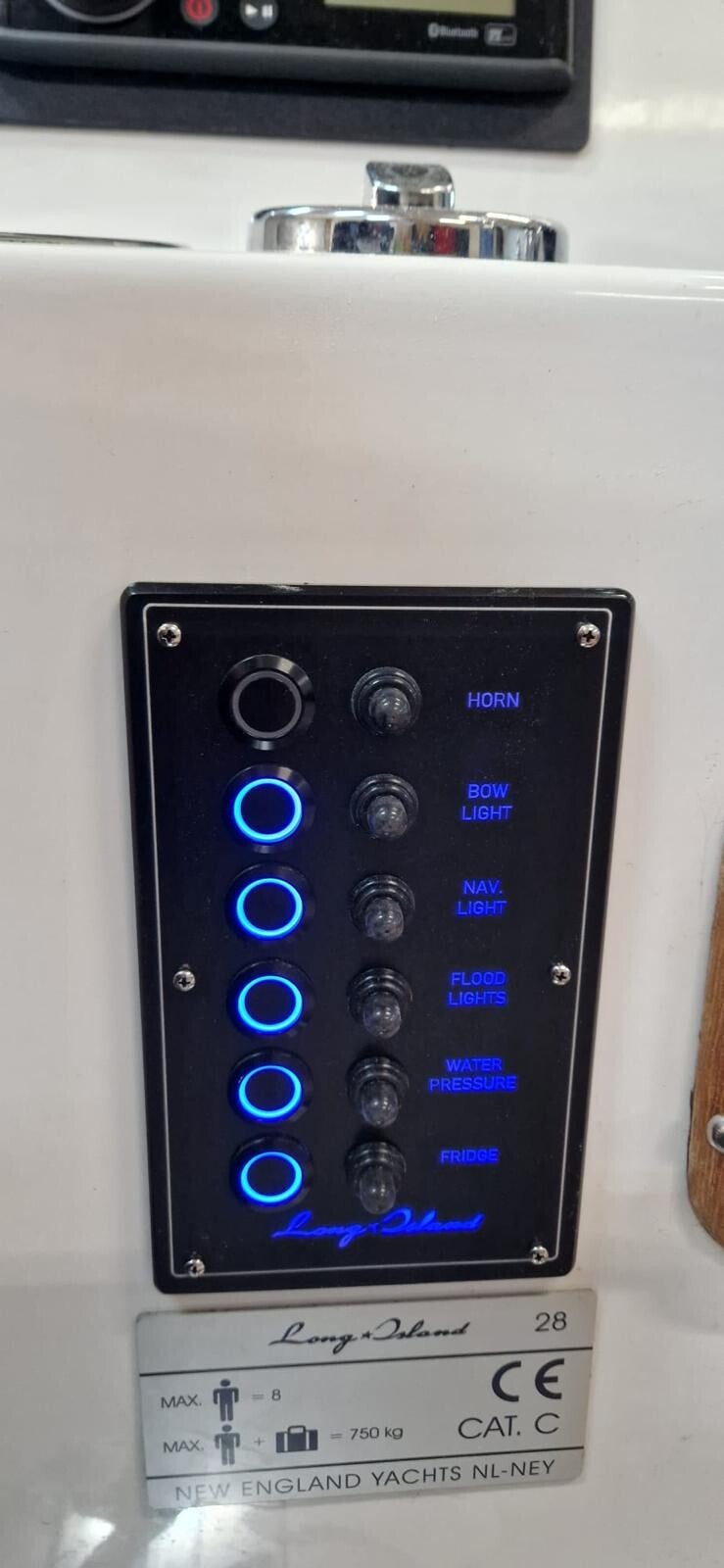

NorTide Marine Equipment Switch Panel
191 x 116 mm
6 waterproof switch panels with LED ring
6 waterproof automatic circuit breakers (push to reset)

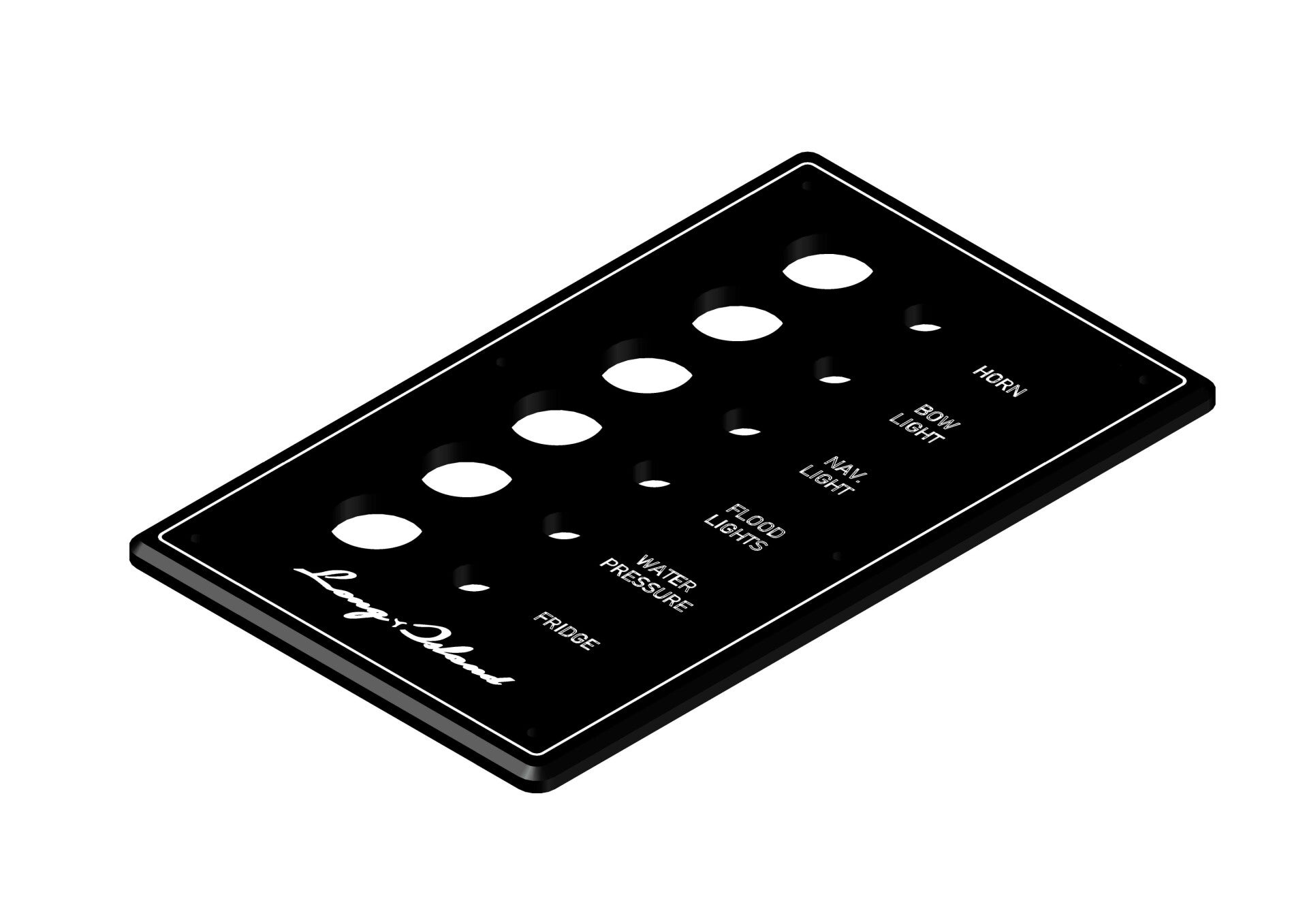

Custom logo and engravings

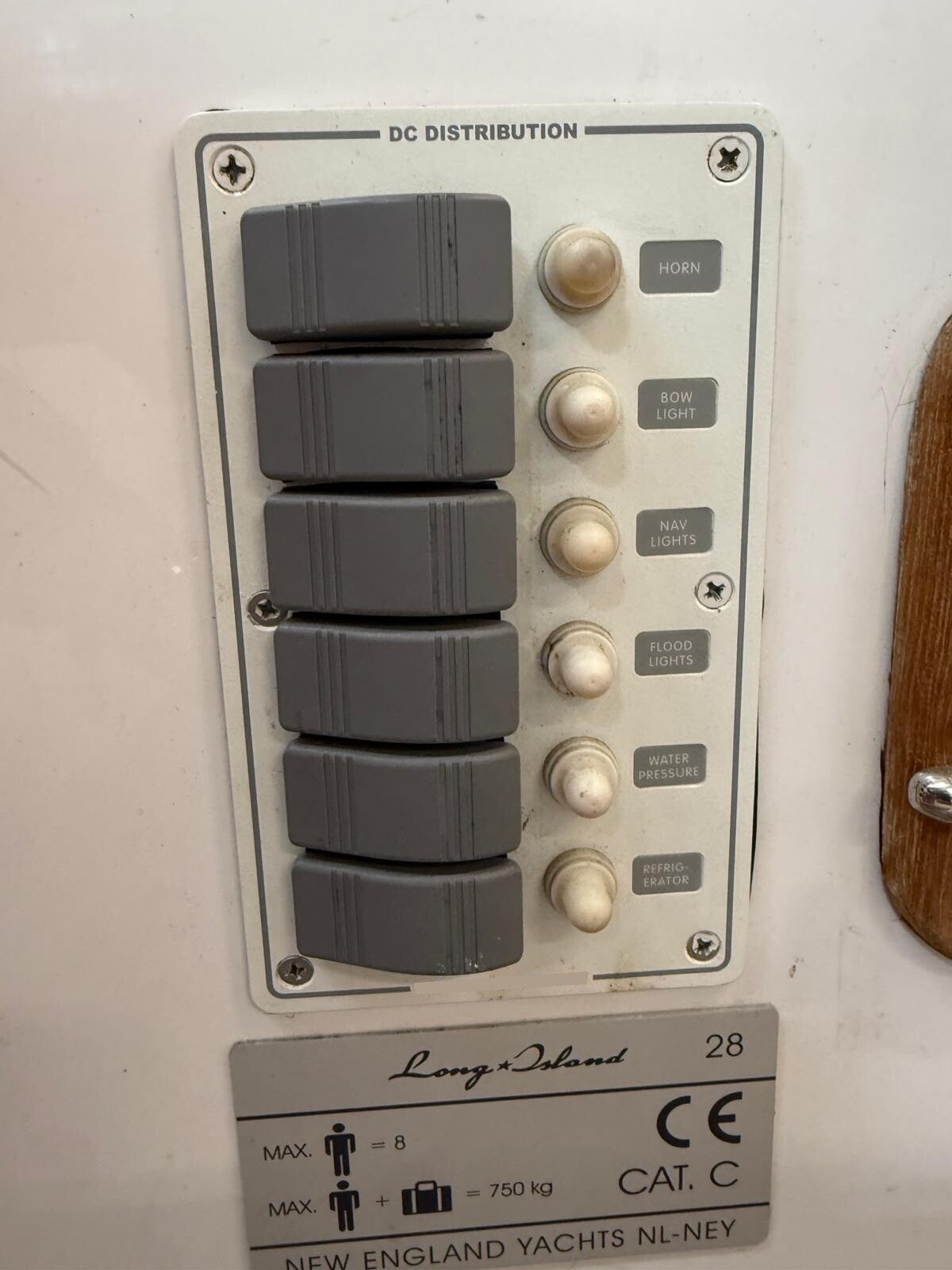

Replacing your old rocker switch panel has never been easier. Designed to fit the mounting footprint of Blue Sea Systems® rocker switch panels, this panel allows for a simple upgrade without modifying the existing cut-out.
This switch panel is made from UV-resistant acrylic, combined with waterproof push buttons and automatic circuit breakers from NorTide Marine Equipment.
This compact switch panel is equipped with thermal circuit breakers, LED indicators, and robust push buttons. Instead of printing your own labels, we engrave your custom text and logo directly into the panel.

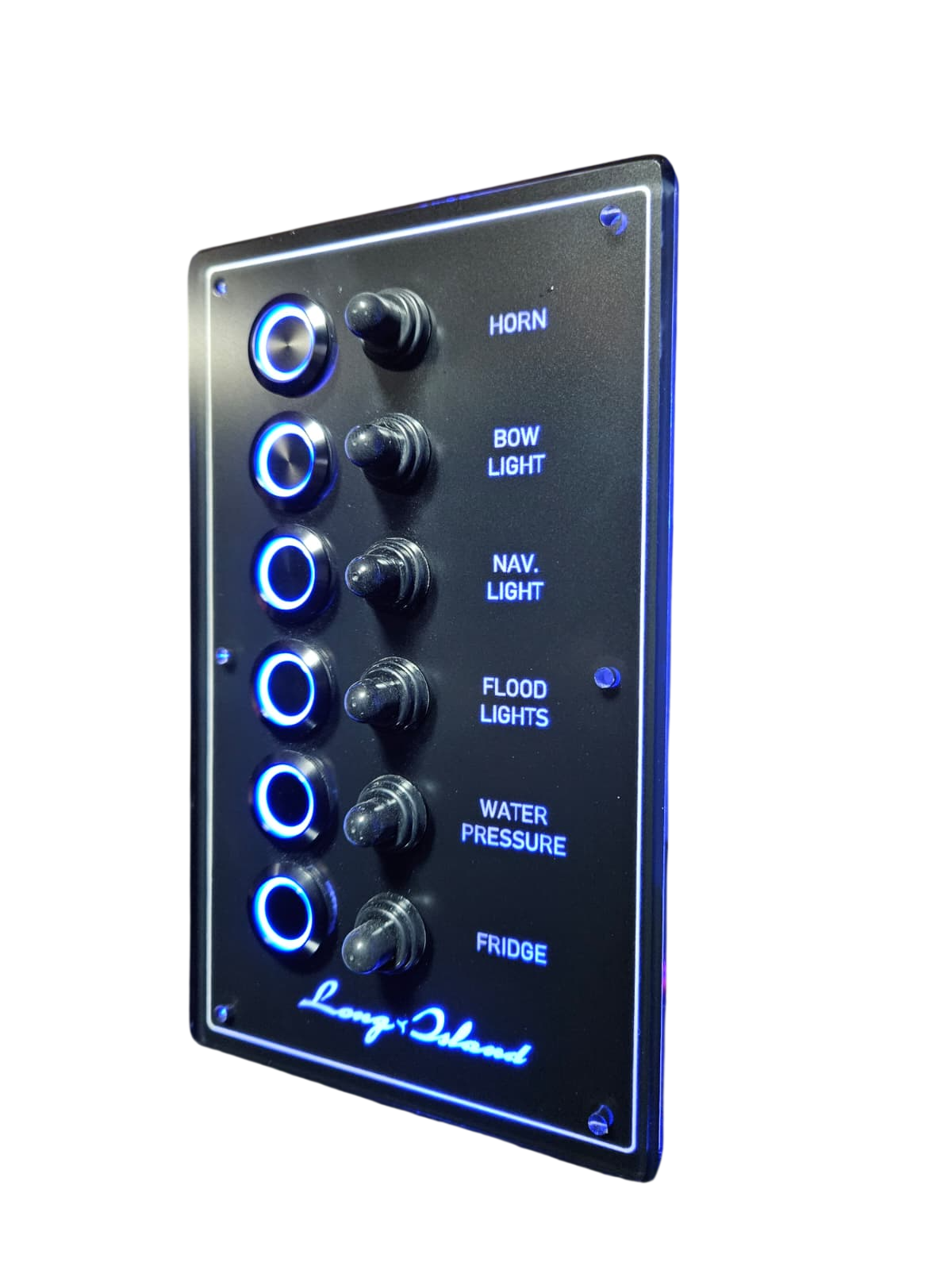

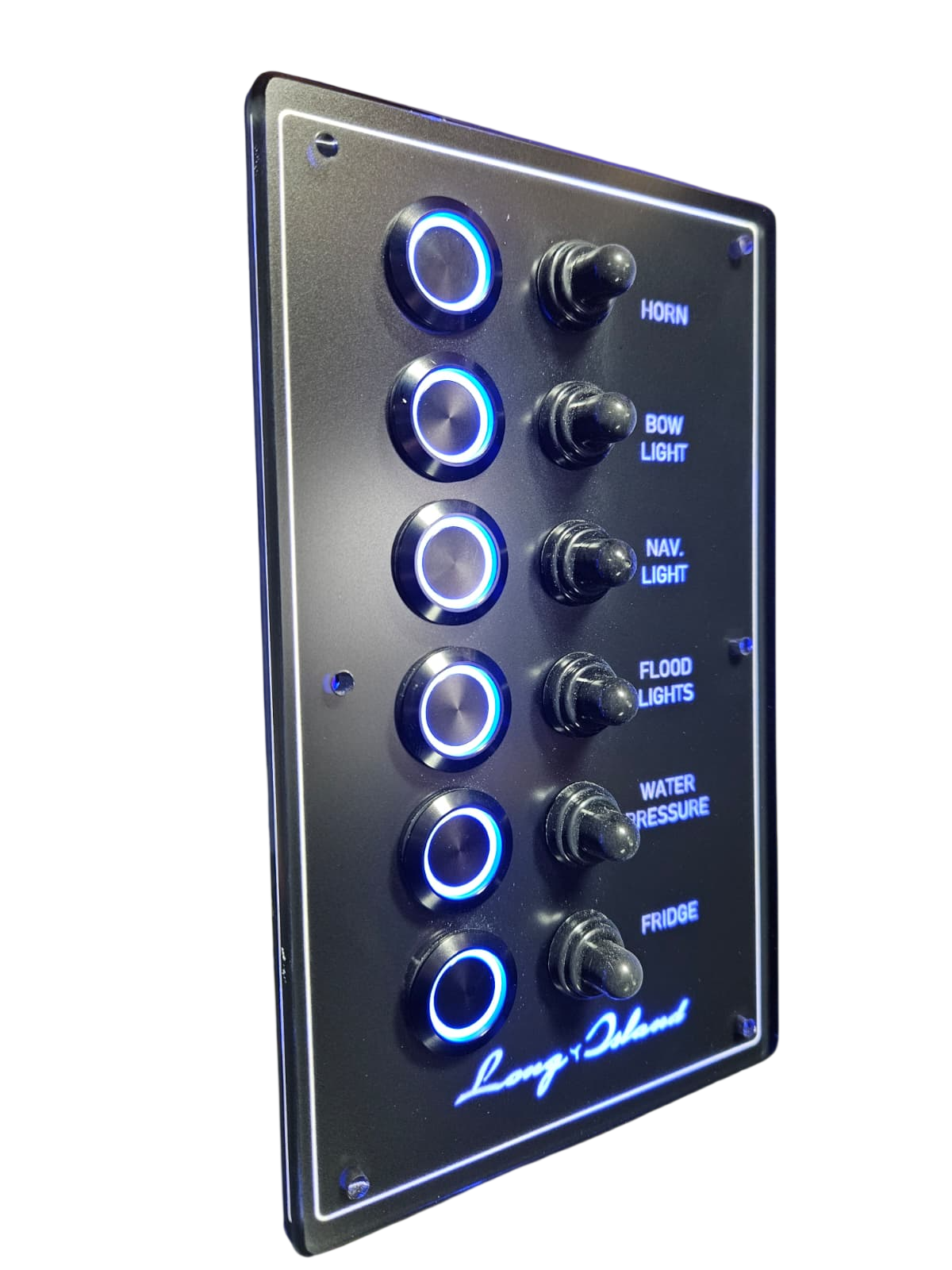

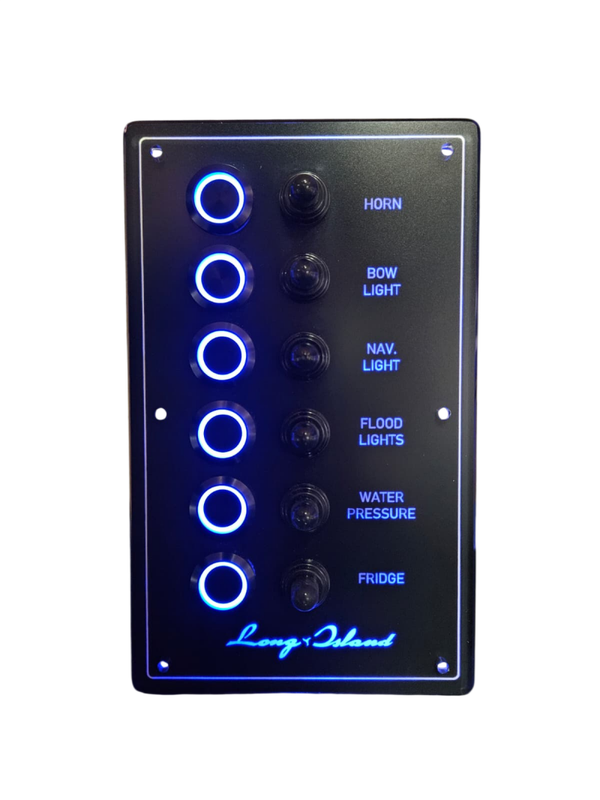

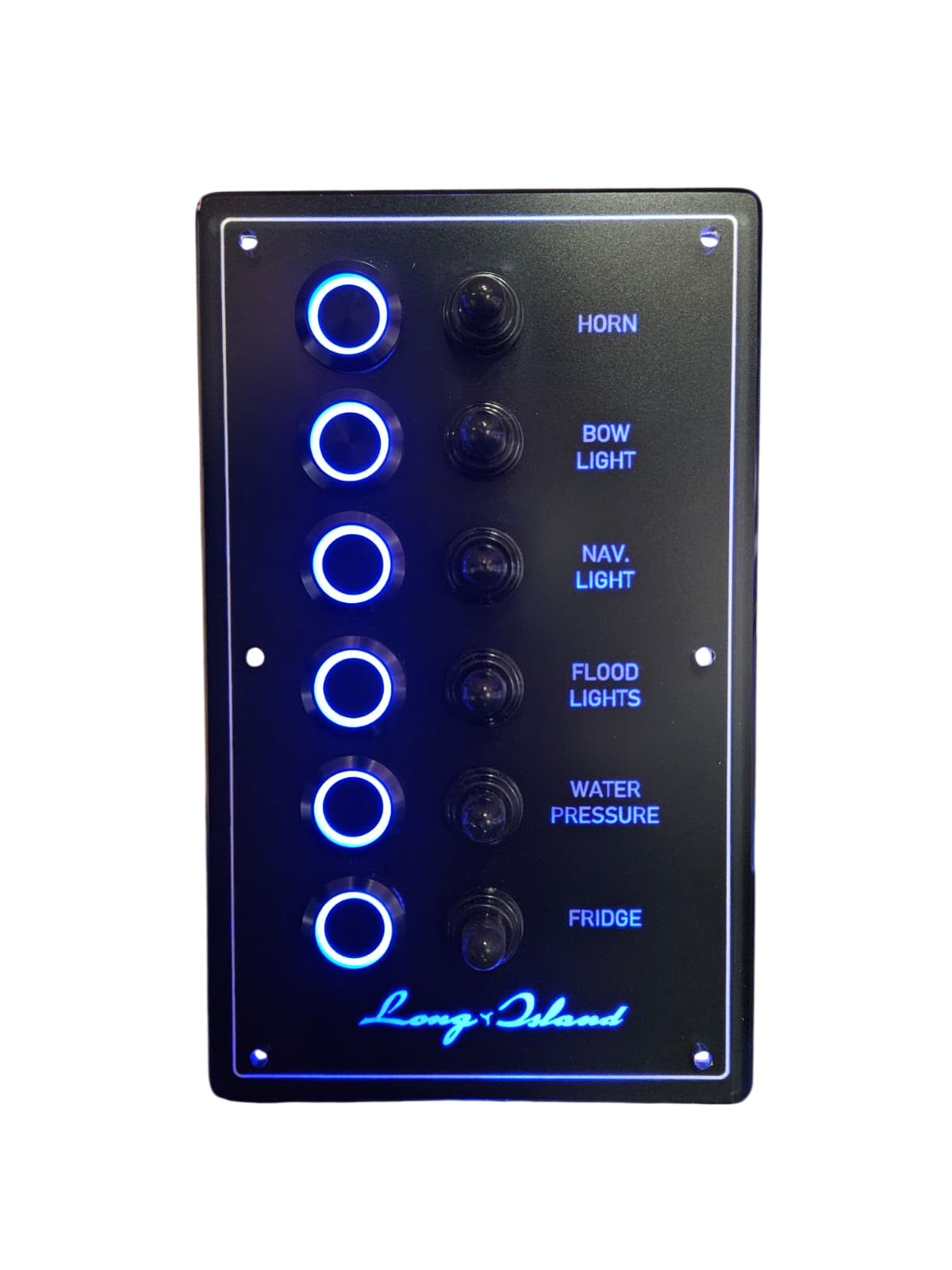

Looking for the finishing touch? Choose illuminated engravings. The backlighting of the engravings can be switched on and off easily using a switch of your choice.
The engravings are perfectly smooth to the touch while remaining razor-sharp and highly visible.
Premium finish – Fully hand-finished and assembled.
12V / 24V multivoltage – Operating voltage range from 8V to 28V.
Easy installation – The panel is pre-wired exclusively with marine-approved and certified cabling.
Installation Tips
Download the template above and print it out. Check with a ruler that the printed version is to scale. Use of this template is entirely at your own risk.
-
Always install a suitably rated main fuse between the switch panel and the battery.
-
Ensure that the cable running from the battery to the panel is of sufficient gauge. We recommend using a 6 mm² cable.
-
Need assistance? Simply contact our technical support team.
| Brand | NorTide Marine |
| Article code | 0350 |
| Max. current (resistive) | 20 Ampere |
| Max. current (inductive) | 15Ampere |
| Circuit breakers value's | Naar keuze |
| Panel height | 191 mm |
| Panel width | 116 mm |
| Panel material | HiGloss Of UniMatte acryllaat |
| Panel material thickness | 5 of 6mm |
| Edges chamfered? | Ja, de randen zijn rondom afgeschuind, geschuurd en gepolijst |
Disclaimer
Blue Sea Systems® is a registered trademark of its respective owner. NorTide Marine Equipment is not affiliated with, endorsed by, or sponsored by Blue Sea Systems
