Dual output pushbutton (ON-OFF)(OFF-ON)(OFF-OFF)

Dual output pushbutton (ON-OFF)(OFF-ON)(OFF-OFF)
€45.00

Double output
316 Stainless Steel
IP67 Waterproof - Front & Back
LEDs are also visible during daylight

19mm Dual output pushbutton (ON)/(ON)/OFF Stainless Steel

Where a standard pushbutton only has 1 output, this smart pushbutton switch has 2, which can be controlled indivdually!
This way you can control 2 devices with 1 button.



  • 20A rated solid state FET driven design
  • IP67 Waterproof
  • Solid milled 316 Stainless Steel body
  • Includes Daybright LEDs for improved daytime visibility
  • LED colors can be customized

Technical properties
Installation diameter           19mm
Outer diameter                       22mm
Voltage                                       12V OR 24
Maximum current                 5A per output - 10A total
Color LED                                  Blue - Red - Green - White
Contacts                                    2X NO
Switching                                 Momentary or latching


Material properties
Housing material                  Stainless Steel 316
Knob material                        Stainless Steel 316
Contact material                   Silver alloy
Base material                          PBT

Environmental properties
IP value                                       IP67
Operating temperature        -20 to +50 °C
Operating pressure force     3 - 5N
Nut tightening torque           5 - 14Nm

Electrical properties
Operating temperature:          -10 to +50 °C
Mechanical life:                           55,000 cycles
LED Lifespan:                               40,000 hours
Front IP Rating:                            IP67 (front)
IP Value rear:                                IP67
Contact resistance:                   (50mΩ)
Nut tightening torque:              5- 14Nm



Functionality

2 different color lights in your cabin - Do you have 2 different ambient color lights in your cabin or console, or underwater lights that have multiple colors? And you want to toggle between the ambient lights colors with one single button?
Then this is the button for you!

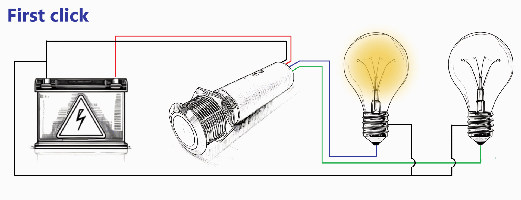

Example: You have 2 different lights in your cabin, Red & White. Connect the RED lights to output 1, and the WHITE lights to output 2.
Press the button once(1st), and the RED lights will turn on in your cabin. Press it again(2th), and the RED lights turn off, WHITE lights turn on. Press it again(3th) and all the lights will be off

Button presses Output 1 Output 2
First press Active Off
Second press Off Active
Third press Off Off
... ... ...
