NorTide IP67 pushbutton switch with label symbol sticker | Orange LED | Stainless steel
This stylish and modern NorTide switch will give your dashboard a completely new look!

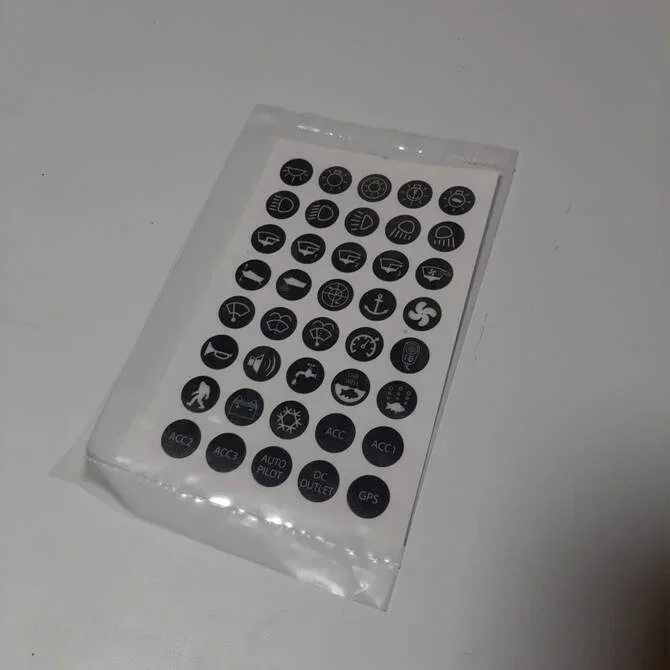

With this unique switch, you won't have to search for stickers or use a label printer yourself. This unique switch is suitable for all onboard electronics, including the bilge pump, navigation lights, or anchor light. One sticker sheet is included with each order.
Specifications:
IP67 waterproof - Dustproof and submersible
Made of Stainless Steel 316 - The best for outdoor use
12V/24V multi-voltage - Suitable for all boats and 12V applications!
Switches up to 20 amps - No need for large relays.
Momentary or Latching - Suitable for, for example, a horn (momentary) or lights (latching)
Orange integrated LED - Which is perfectly visible, even during daylight!
Scroll down for more information!
Technical Specifications
Installation Diameter 19mm
Outer Diameter 22mm
Voltage 12V/24V
Maximum Current 20A
LED Color Blue
Contacts 1x NO
Switching Type Spring-Return or Click
Material Properties
Housing Material Stainless Steel 316
Button Material Stainless Steel 316
Contact Material Silver Alloy
Base Material PBT
Environmental Properties
IP Rating IP67
Operating Temperature -20 to +50 °C
Operating pressure 3–5N
Nut tightening torque 5–14Nm
Material: Stainless Steel 316
Operating temperature -10 to +50 °C
Mechanical lifespan 55,000 cycles
LED life: 40,000 hours
IP rating front: IP67 (front)
IP rating rear IP65, with connector
Contact resistance (50 mΩ)
Nut tightening torque: 5-14 Nm
The difference between a spring-loaded switch and a latching switch:
The difference between a momentary and a latching switch lies in how they maintain their position:
Momentary switch: Returns to its original position when released. For temporary functions, such as a doorbell or horn.
Latching switch: Remains in the selected position (on/off) until manually reset. For functions such as lights.
NorTide Marine Equipment is a brand that specializes in high-quality switches and electronics for various applications. While there are many different switches available, not all offer the quality you're looking for.
NorTide offers a wide selection of top-quality switches, designed with attention to detail and featuring the finest appearance. Each NorTide switch combines functionality with a stylish design and is carefully selected and tested to meet the highest standards. Whether you're looking for durability, reliability, or a refined finish,
With a NorTide pushbutton or switch, you'll notice from the first press that it's not just any old switch. These switches immediately give you the feeling of quality combined with robustness. Perfect for use in your boat, camper, machine, or other application!
Why NorTide pushbuttons / switches
At NorTide Marine, we don’t just supply pushbuttons — we deliver confidence and reliability. Our products are engineered to meet the toughest marine and industrial standards, ensuring durability, reliability, and sleek functionality in every environment. But what truly sets us apart is our commitment to people. Whether you're an engineer needing precision or a business looking for efficiency, our team is here to guide you — before, during, and long after your order.
With NorTide, you get:
Premium Components: Carefully selected materials for top-tier performance and longevity.
Expert Support: Decades of combined experience at your fingertips, whenever you need it.
Customization Options: Tailored solutions to meet the unique demands of your project.
Rapid Delivery: We keep things moving so you can, too.
Sustainability Mindset: Built to last, in every application.
Waterproof switches for the maritime sector and machine builders
It's important that a switch is waterproof, especially when used in the recreational boating, offshore, and maritime sectors.
NorTide switches are carefully designed, with waterproofness being one of the most important factors.
Whether the switch is used outdoors in rain, splash water, or damp environments, the built-in seal in the switch ensures that moisture cannot enter.
In addition, the waterproof connector (available separately) makes the switch easy to install. This connector eliminates the need for other waterproofing measures to protect the switch from moisture.
Instant switching up to 20 amps!
NorTide Marine switches are known for their quality and reliability. The Performance series switches are rated for up to 20 amps, while the average stainless steel pressure head only handles 3 amps. Moreover, all products are CE certified and have been field-tested by professional boat builders!
This makes NorTide switches perfect for use onboard ships or other industrial applications.
